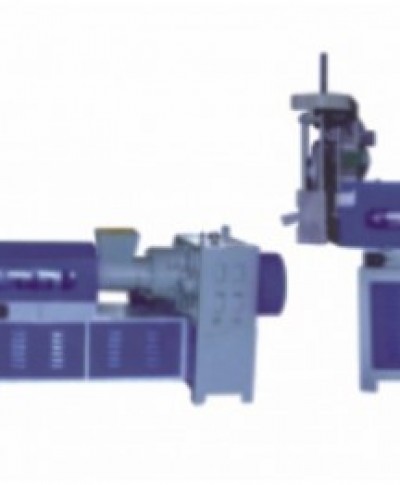

SJ-B Waste plastic recycling machine

SJ-B Waste plastic recycling machine

SJ-B90、100、110、120 Waste Plastics Recycling Machine is used for recycling of the used and waste plastic materials. It equipped with automatic constant temperature, clectric changing filter nets. It also can pelletize the croushing material after fitting with a loader. The cutting machine adopts speed regulating motor. which can cut the matcrial according to the feeding speed of the extruder. With such features as high output, low noise, stable performance and easy operation. It is a more ideal waste plastic film regenerative. pelletizer.

Main Technical Variables

model SJ-B90 SJ-B100 SJ-B110 SJ-B120
Diameter of Screw Stem 85mm 95mm 105mm 110mm
Major Diameter Ratio of Screw Stem 20:1-22:1(L/D) 20:1-22:1(L/D) 20:1-22:1(L/D) 20:1-22:1(L/D)
Rational Speed of Screw 10-110rpm 10-110rpm 10-110rpm 10-110rpm
Main Motor Power 22kw 30kw 30kw 37kw
Output 60kg/h 90kg/h 110kg/h 130kg/h
Machine Weight 2t 2.1t 2.2t 2.5t
Overail Dimensions(LxWxH) 5800 x 1500 x 1100 5900 x 1300 x 1200 6000 x 1350 x 1300 6200 x 1400 x 1350
